Stainless Steel Forged Fitting ASME SA105 B16.11 3000 NPT Half Coupling With B16.11 Standard

STAINLESS STEEL FORGED FITTING ASME SA105 B16.11 HALF COUPLING 3000# NPT

A half coupling is a type of pipe fitting used in plumbing and piping systems. It is a shorter version of a coupling and is used to connect two pipes, but only at one end. Here's more detail about it:

Features of a Half Coupling:

1. Connection Type: A half coupling is threaded or socket-welded at one end, while the other end remains open or unfinished.

   • Threaded half coupling: It has internal threads for screwing onto the threaded end of a pipe.
   • Socket-welded half coupling: It has a smooth end for welding onto a pipe.

2. Purpose:

   • Half couplings are typically used to branch off a main pipe to connect smaller piping or instrumentation.
   • It is often welded or attached to the wall of a pipe, tank, or fitting.

3. Materials:

   • They are made from various materials, such as stainless steel, carbon steel, brass, or PVC, depending on the application and the type of fluid being transported.

4. Applications:

   • Commonly used in low-pressure applications, such as in plumbing systems, irrigation, and chemical processing plants.
   • Also found in pipelines for creating branch connections or outlets.

Difference Between Half Coupling and Full Coupling:

• A full coupling has connections on both ends, allowing two pipes to be joined end-to-end.
• A half coupling, on the other hand, only connects to one pipe and is often welded or attached to another surface for creating a branch or outlet.

3000 NPT Half Coupling

ASME SA105 Half Coupling

B16.11 Half Coupling

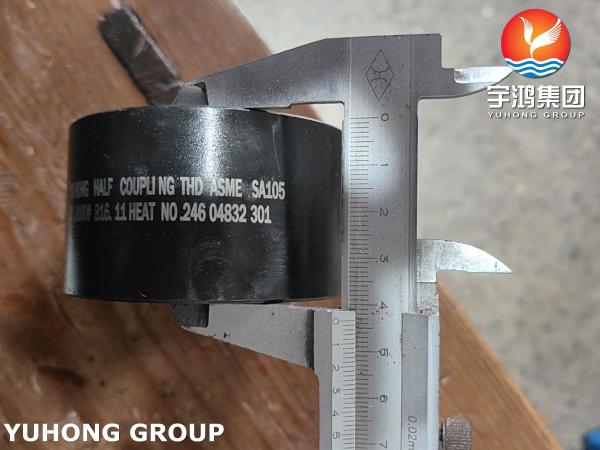

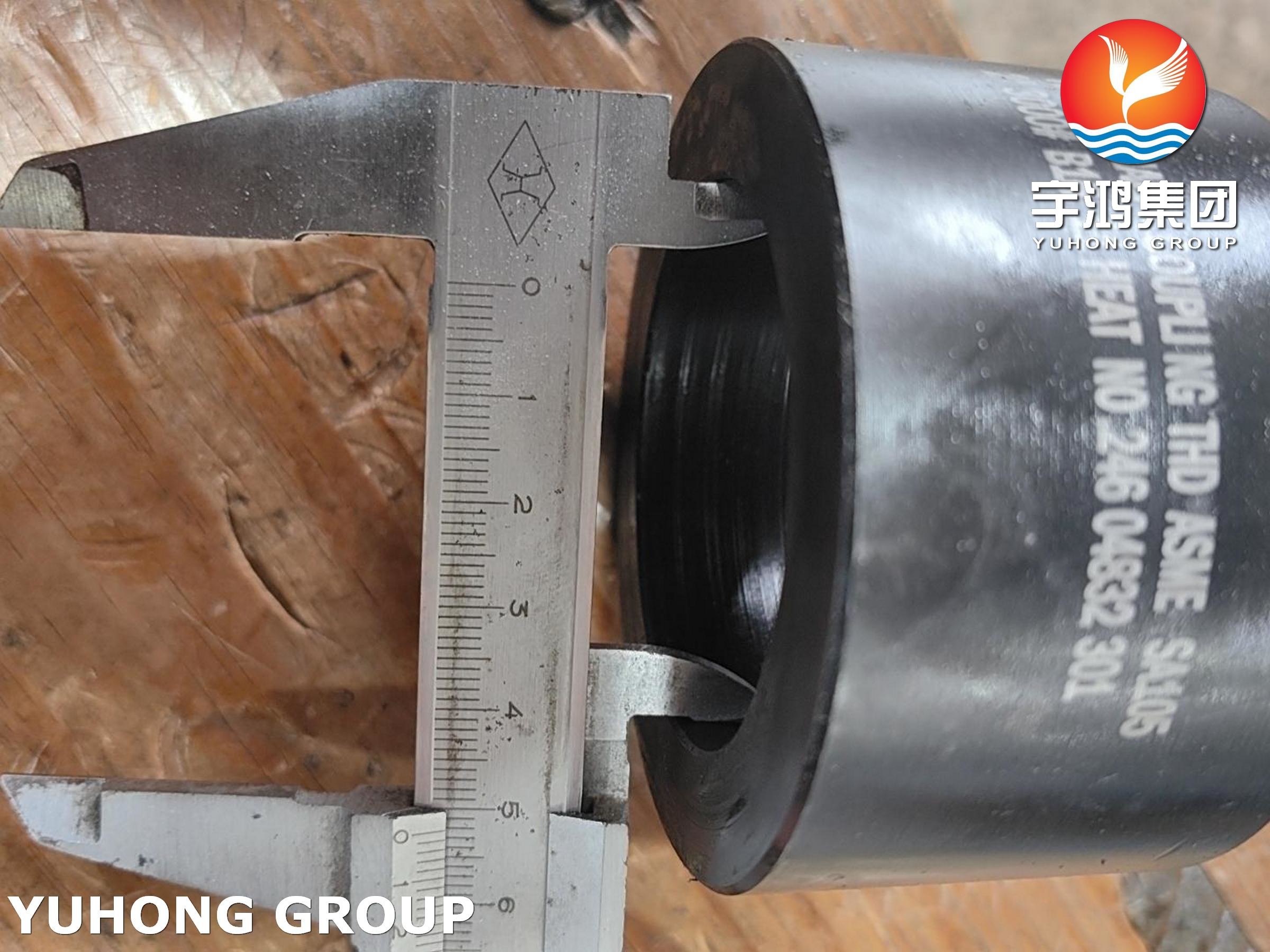

Stainless Steel Forged Fitting ASME SA105 B16.11 3000 NPT Half Coupling With B16.11 Standard Images
